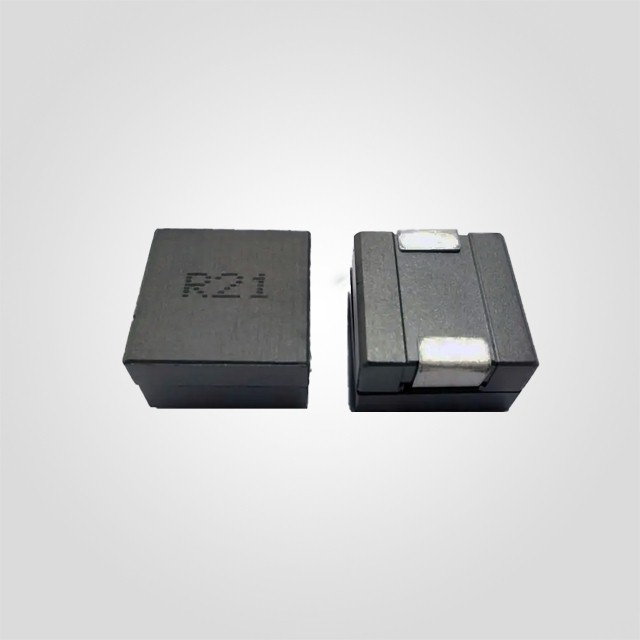

Power Bead Inductor - MHC Series
|
Type |
Dimensions (mm) |
Inductance Range |
DCR |
Specification |
|
MHC050506 |
5.2x5.0x6.1 |
50nH - 100nH |
0.20mΩ |
 |
|
MHC6030 |
7.2x6.7x3.0 |
47nH - 64nH |
0.24mΩ |
|
|
MHC7050 |
7.0x6.6x5.0 |
47nH - 310nH |
0.26mΩ |
|
|
MHC7070 |
7.0x7.0x7.0 |
100nH - 330nH |
0.29mΩ |
|
|
MHC1050 |
10.0x7.0x5.0 |
120nH - 220nH |
0.34mΩ |
|
|
MHC100705-D32 |
10.2x7.0x5.0 |
72nH - 300nH |
0.325mΩ |
|
|
MHC100705-D29 |
10.2x7.0x5.0 |
100nH - 200nH |
0.29mΩ |
|
|
MHC1070-D29 |
11.0x7.5x7.0 |
120nH - 330nH |
0.29mΩ |
|
|
MHC1070-D70 |
10.4x7.4x7.0 |
150nH - 370nH |
0.70mΩ |
|
|
MHC1070-D47 |
10.1x7.0x7.0 |
100nH - 400nH |
0.47mΩ |
|
|
MHC1075-D29 |
10.3x7.0x7.2 |
100nH - 510nH |
0.29mΩ |
|
|
MHC1075-D47 |
11.0x7.0x7.0 |
120nH - 510nH |
0.47mΩ |
|
|
MHC100707 |
11.0x7.5x7.0 |
120nH - 250nH |
0.37mΩ |
|
|
MHC100865 |
10.4x8.0x6.5 |
120nH - 300nH |
0.48mΩ |
|
|
MHC101005 |
10.0x9.7x5.0 |
200nH - 360nH |
0.26mΩ |
|
|
MHC110707 |
10.2x7.6x7.2 |
150nH - 500nH |
0.29mΩ |
|
|
MHC110709 |
9.8x7.5x9.0 |
150nH - 400nH |
0.29mΩ |
|
|
MHC1190 |
11.3x11.0x9.0 |
150nH - 540nH |
0.30mΩ |
|
|
MHC130704 |
13.3x7.5x4.2 |
100nH - 470nH |
0.225mΩ |
|
|
MHC1350 |
13.5x13.2x5.0 |
100nH - 520nH |
0.155mΩ |
|
|
MHC1380 |
13.46x12.95x8.5 |
110nH - 500nH |
0.32mΩ |
|
|
MHC1390 |
14.0x12.8x9.0 |
230nH - 450nH |
0.30mΩ |
|
|
MHC150705 |
14.7x6.7x5.0 |
100nH - 150nH |
0.47mΩ |
|
