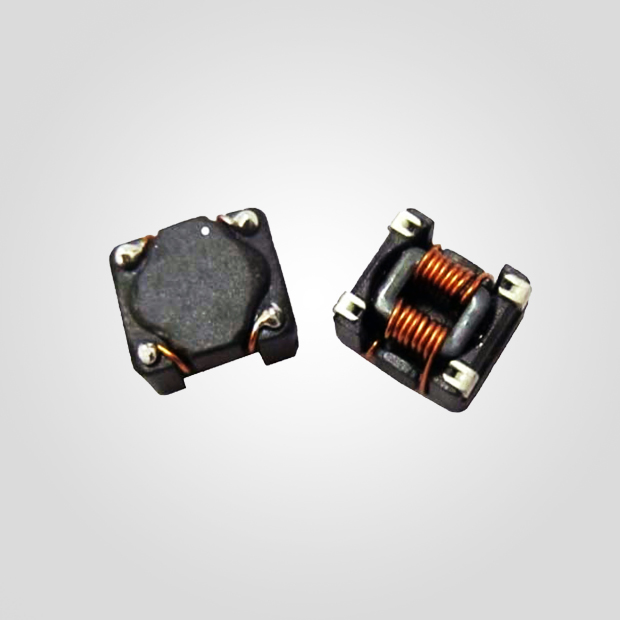

SMD Common Mode Line Filter – MSCB1085 Series
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
MSCB1085 |
10 |
8.7 |
6.5 |
120uH - 3300uH |
0.65A - 2.5A |
|
|
Part Number |
Inductance (uH) |
Impedance (Ω) |
DCR (mΩ) |
Rated Current (A) |
Cross reference Wurth P/N |
|
MSCB1085-121 |
120 ±40% |
460 |
25 |
2.5 |
744272121 |
|
MSCB1085-221 |
220 ±40% |
780 |
32 |
2.2 |
744272221 |
|
MSCB1085-251 |
250 ±40% |
970 |
35 |
2.0 |
744272251 |
|
MSCB1085-471 |
470 ±40% |
1750 |
65 |
1.6 |
744272471 |
|
MSCB1085-102 |
1000 ±40% |
3600 |
180 |
0.95 |
744272102 |
|
MSCB1085-332 |
3300 ±40% |
8900 |
360 |
0.65 |
744272332 |
