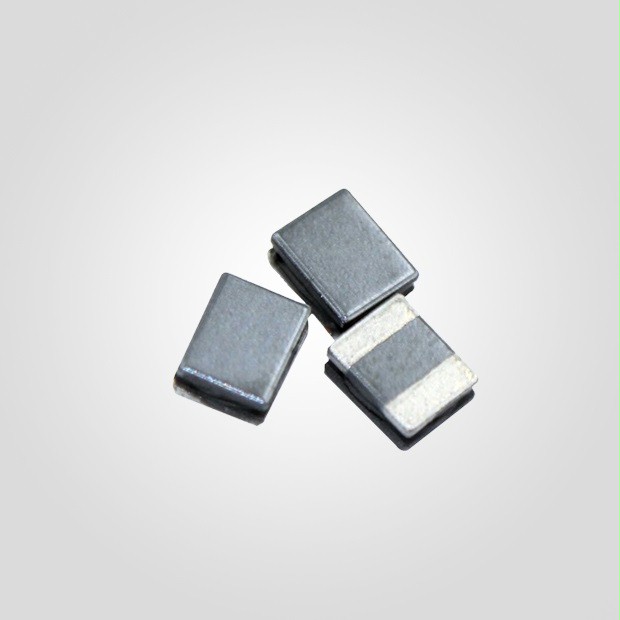

Semi-Shielded Power Inductors - SNR Series
Download Spec(6521.20KB)
|
Series |
Dimensions (mm) |
Inductance Range |
Saturation Current |
Specification |
||
|
L |
W |
H |
||||
|
SNR252010 |
2.5±0.3 |
2.0±0.35 |
1.05Max |
0.47uH - 22uH |
0.4A - 2.5A |
|
|
SNR252012 |
2.5±0.3 |
2.0±0.35 |
1.25Max |
0.25uH - 22uH |
0.5A - 4.05A |
|
Characteristics
Compact design Power Inductor
1.7 times more current than compared to an unshielded version
Robust construction, Low RDC
Magnetically shielded by use of a magnetic resin
Operating temperature: -40°C to +125°C
Applications
Integrated DC/DC Converters
Switching controllers which require high efficiency
Portable power (PDA, Smartphones, Digital Cameras, TVs, LCD etc.)
Embedded Laptops and PCs
Big sizes can be used in shock resisting circuits
