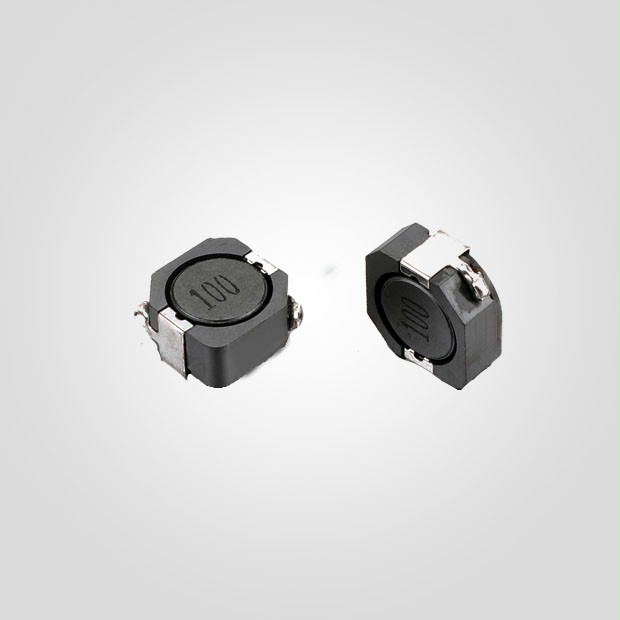

SMD Shielded High Current Low Profile Power Inductor (MSRH103/104/105 Series)
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L(max) |
W(max) |
H(max) |
||||
|
MSRH103 |
10.3 |
10.5 |
3.0 |
10µH - 150µH |
0.7A - 2.7A |
|
|
MSRH104 |
10.3 |
10.5 |
4.0 |
1.3µH - 330µH |
0.7A - 10.0A |
|
|
MSRH105 |
10.3 |
10.5 |
5.1 |
6.8µH - 1000µH |
0.48A - 5.5A |
|
Characteristics
Ultra low RDC and Rated current
Highest possible saturation current based on ferrite
Suitable for switching frequency up to 10 MHz
Temperature dependent parameter available on REDEXPERT
Operating temperature: -40 °C to +125 °C / +150 °C
Applications
Switch mode power supplies from 0.1 W up to 300 W
Integrated DC/DC converter
Ideal for switch mode power supplies with extreme high efficiency (>95%)
可替代Sumida CDRH103, CDRH104, CDRH105系列贴片屏蔽电感
