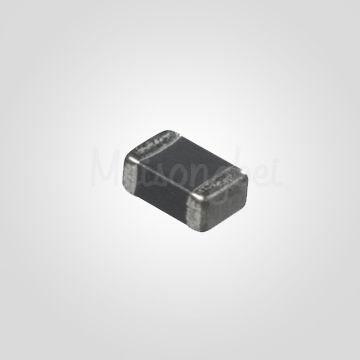

SMT EMI Suppression Ferrite Bead, Multilayer Chip Ferrite Beads for EMI Suppression
|
Description |
Series |
Impedance Range |
Rated Current |
Specification |
|
Multilayer Chip Ferrite Beads |
MSMB100505 (0402) |
10 - 1000Ω |
50mA - 900mA |
|
|
MSMB160808 (0603) |
10 - 2500Ω |
|||
|
MSMB201209 (0805) |
5 - 2700Ω |
|||
|
MSMB321611 (1206) |
26 - 1500Ω |
|||
|
MSMB322513 (1210) |
31 - 60Ω |
|||
|
MSMB451616 (1806) |
60 - 600Ω |
|||
|
MSMB453215 (1812) |
60 - 150Ω |
|||
|
High Current Chip Ferrite Beads |
MSMA100505 (0402) |
10 - 220Ω |
1A – 3A |
|
|
MSMA160808 (0603) |
30 - 1200Ω |
|||
|
MSMA201209 (0805) |
30 - 1500Ω |
|||
|
MSMA321609 (1206) |
19 - 1000Ω |
|||
|
MSMA322513 (1210) |
60 - 1000Ω |
|||
|
MSMA451616 (1806) |
60 - 1000Ω |
|||
|
MSMA453215 (1812) |
120 - 780Ω |
|||
|
Super High Current Chip Ferrite Beads |
MSMC160808 (0603) |
26Ω |
4 - 10A |
|
|
MSMC201209 (0805) |
7 - 120Ω |
|||
|
MSMC321611 (1206) |
31 - 120Ω |
|||
|
MSMC322513 (1210) |
52 - 60Ω |
|||
|
MSMC451616 (1806) |
60Ω |
|||
|
MSMC453215 (1812) |
60 - 150Ω |
|||
|
MSMC565018 (2220) |
100 - 250Ω |
|||
|
MSMC853022 (3312) |
100Ω |
|||
|
High frequency Chip Ferrite Beads |
MSBC1005 (0402) |
200 - 1000Ω |
50 - 300mA |
|
|
MSBC1608 (0603) |
100 - 1200Ω |
Applications
MSMA, MSMB, MSMC Series for General signal and low power lines, Audio/video/clock lines, Small handhelds
Perfect as data line filter and for uncoupling of distribution voltage.
MSBC Series especially for the suppression of signal lines in the high frequency range
