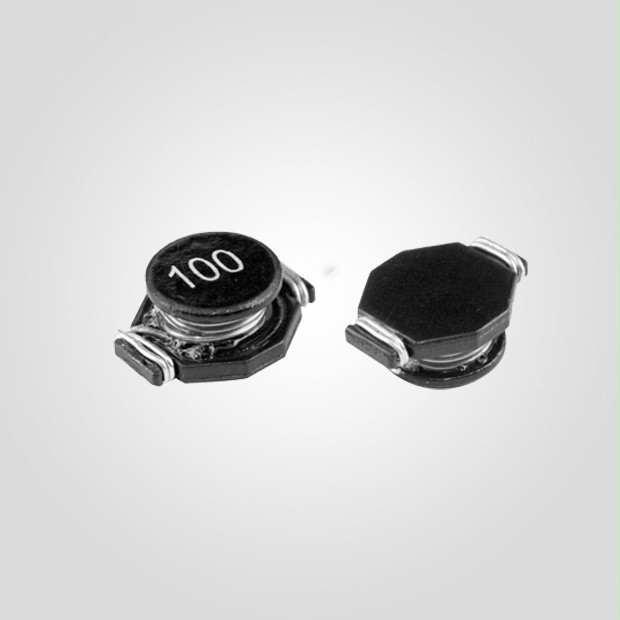

Surface Mount wire wound High Current Inductors (MSG1813HC / MSG3316HC Series)
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
L |
W |
H |
||||
MSG1813HC |
8.9 |
6.1 |
5.0 |
0.18µH - 100µH |
0.5 - 14A |
|
MSG3316HC |
13.2 |
9.9 |
6.4 |
0.33µH - 4.7µH |
5.4 - 20A |
Part Number |
Inductance |
DCR(max) |
Isat(max) |
Irms(max) |
Cross reference Coilcraft P/N |
MSG1813HC-R18M |
0.18 ±20% |
0.003 |
14.0 |
10.0 |
DO1813H-181ML |
MSG1813HC-R33M |
0.33 ±20% |
0.004 |
10.0 |
7.0 |
DO1813H-331ML |
MSG1813HC-R56M |
0.56 ±20% |
0.010 |
7.7 |
6.0 |
DO1813H-561ML |
MSG1813HC-1R2M |
1.2 ±20% |
0.017 |
5.3 |
4.4 |
DO1813H-122ML |
MSG1813HC-2R2M |
2.2 ±20% |
0.035 |
3.5 |
3.1 |
DO1813H-222ML |
MSG1813HC-3R3M |
3.3 ±20% |
0.040 |
3.0 |
2.7 |
DO1813H-332ML |
MSG1813HC-4R7M |
4.7 ±20% |
0.054 |
2.6 |
2.2 |
DO1813H-472ML |
MSG1813HC-6R8M |
6.8 ±20% |
0.080 |
2.2 |
1.8 |
DO1813H-682ML |
MSG1813HC-100M |
10 ±20% |
0.111 |
1.9 |
1.5 |
DO1813H-103ML |
MSG1813HC-150M |
15 ±20% |
0.170 |
1.5 |
1.2 |
DO1813H-153ML |
MSG1813HC-220M |
22 ±20% |
0.250 |
1.2 |
1.0 |
DO1813H-223ML |
MSG1813HC-330M |
33 ±20% |
0.350 |
0.99 |
0.82 |
DO1813H-333ML |
MSG1813HC-470M |
47 ±20% |
0.470 |
0.87 |
0.72 |
DO1813H-473ML |
Part Number |
Inductance |
DCR(max) |
Isat(max) |
Irms(max) |
Cross reference Coilcraft P/N |
MSG3316HC-R33M |
0.33 ±20% |
0.002 |
20.0 |
16.0 |
DO3316H-331ML |
MSG3316HC-R68M |
0.68 ±20% |
0.005 |
13.0 |
12.0 |
DO3316H-681ML |
MSG3316HC-1R0M |
1.0 ±20% |
0.006 |
11.0 |
10.0 |
DO3316H-102ML |
MSG3316HC-1R5M |
1.5 ±20% |
0.008 |
9.0 |
9.0 |
DO3316H-152ML |
MSG3316HC-2R2M |
2.2 ±20% |
0.011 |
7.8 |
7.4 |
DO3316H-222ML |
MSG3316HC-2R7M |
2.7 ±20% |
0.012 |
7.0 |
6.6 |
DO3316H-272ML |
MSG3316HC-3R3M |
3.3 ±20% |
0.014 |
6.4 |
5.9 |
DO3316H-332ML |
MSG3316HC-4R7M |
4.7 ±20% |
0.018 |
5.4 |
4.8 |
DO3316H-472ML |
