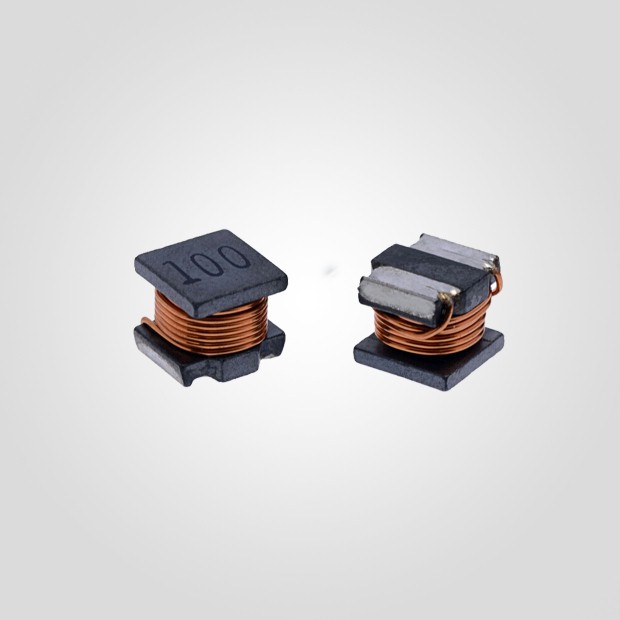

SMT Inductor, SMD wire wound power inductor - MSE Series
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
L |
W |
H |
||||
MSE1210 |
3.2 |
2.5 |
2.0 |
0.1uH - 270uH |
0.07A - 0.7A |
|
MSE1812 |
4.5 |
3.2 |
2.6 |
1uH - 470uH |
0.08A - 0.55A |
|
MSE2220 |
5.7 |
5.0 |
4.7 |
0.12uH - 6800uH |
0.06A - 6A |
Characteristics
Miniature chip inductor wound on a special ferrite core
Small inductances for compact circuits
High Q at high frequencies
Low DC-resistance
Operating temperature: –40 ºC to +125 ºC
Recommended solder profile: Reflow
Applications
Low power DC/DC-converters from Linear Technology, National Semiconductor, Texas Instruments,
Fairchild Semiconductor, ON Semiconductor, STMicroelectronics, Maxim, MPS, Semtech, Exar,
Analogic Tech, Diodes and Cologne Chip, EMI-Filtering, RF-circuits
