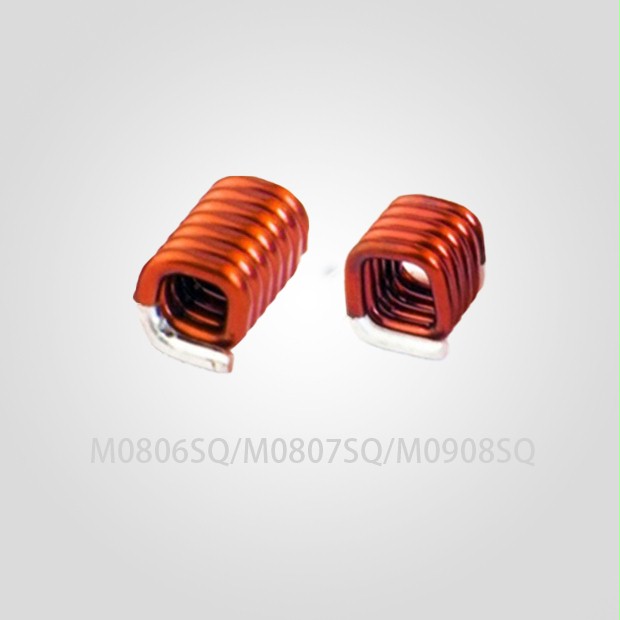

SMD air coil, Square Air Core Indutors M0806SQ, M0807SQ, M0908SQ
| Part Number | Inductance [nH] | Irms [A] | Cross Coilcraft P/N |
| M0806SQ-5N5_ | 5.5 | 2.9 | 0806SQ-5N5_ |
| M0806SQ-6N0_ | 6 | 2.9 | 0806SQ-6N0_ |
| M0806SQ-8N9_ | 8.9 | 2.9 | 0806SQ-8N9_ |
| M0806SQ-12N_ | 12.3 | 2.9 | 0806SQ-12N_ |
| M0806SQ-16N_ | 15.7 | 2.9 | 0806SQ-16N_ |
| M0806SQ-19N_ | 19.4 | 2.9 | 0806SQ-19N_ |
| M0807SQ-6N9_ | 6.9 | 2.7 | 0807SQ-6N9_ |
| M0807SQ-10N_ | 10.2 | 2.7 | 0807SQ-10N_ |
| M0807SQ-11N_ | 11.2 | 2.7 | 0807SQ-11N_ |
| M0807SQ-14N_ | 13.7 | 2.7 | 0807SQ-14N_ |
| M0807SQ-17N_ | 17 | 2.7 | 0807SQ-17N_ |
| M0807SQ-22N_ | 22 | 2.7 | 0807SQ-22N_ |
| M0908SQ-8N1_ | 8.1 | 4.4 | 0908SQ-8N1_ |
| M0908SQ-12N_ | 12.1 | 4.4 | 0908SQ-12N_ |
| M0908SQ-14N_ | 14.7 | 4.4 | 0908SQ-14N_ |
| M0908SQ-17N_ | 16.6 | 4.4 | 0908SQ-17N_ |
| M0908SQ-22N_ | 21.5 | 4.4 | 0908SQ-22N_ |
| M0908SQ-23N_ | 23 | 4.4 | 0908SQ-23N_ |
| M0908SQ-25N_ | 25 | 4.4 | 0908SQ-25N_ |
| M0908SQ-27N_ | 27.3 | 4.4 | 0908SQ-27N_ |
Characteristics
No saturation, No core losses
Extremely high Q-Factor, Ultra low RDC
High current capability
Operating temperature: -40 °C up to +125 °C
Applications
High current DC-DC converters
RF power amplifiers, RF-Voltage regulators
High current RF filters/chokes, Power supplies
Magnetically-sensitive applications
