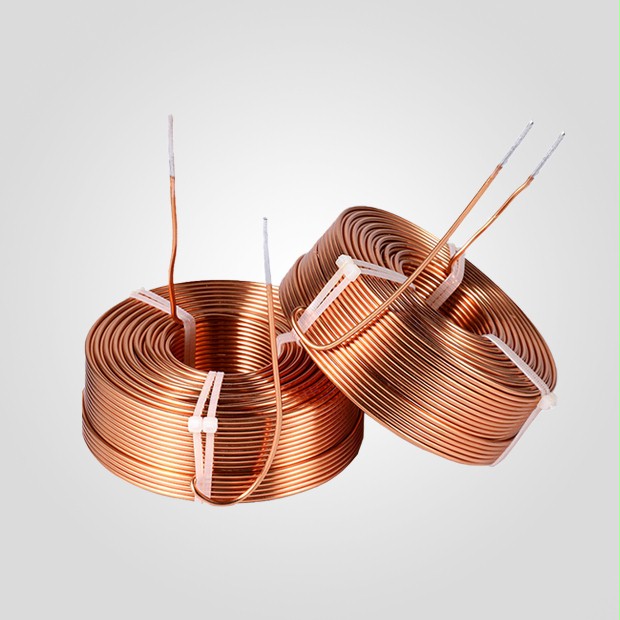

Meisongbei Divider inductors are made from high purity 4N copper wire. During the manufacturing process they are baked into a highly stable self supporting structure. The enamelled copper wire used is solderable and possesses a self-bonding topcoat, which bonds to the neighbouring wire. They are reasonably priced components and very popular with those constructors on a shoe-string.
They offer low tolerance at +/-3% and power handling dependent on the wire used, makes it the most versatile coil on the market
Specifications:
There are 11 wire sizes available with the following range of values:
29 AWG, wire diameter 0.3mm: 0.15mH to 10mH
26 AWG, wire diameter 0.4mm: 0.03mH to 25mH
24 AWG, wire diameter 0.5mm: 0.1mH to 27mH
22 AWG, wire diameter 0.63mm: 0.1mH to 22mH
21 AWG, wire diameter 0.7mm: 0.047mH to 35mH
20 AWG, wire diameter 0.8mm: 0.01mH to 100mH
18 AWG, wire diameter 1mm: 0.068mH to 18mH
17 AWG, wire diameter 1.2mm: 0.1mH to 22mH
15 AWG, wire diameter 1.4mm: 0.01mH to 10mH
14 AWG, wire diameter 1.6mm: 0.01mH to 15mH
13 AWG, wire diameter 1.8mm: 0.01mH to 10mH
