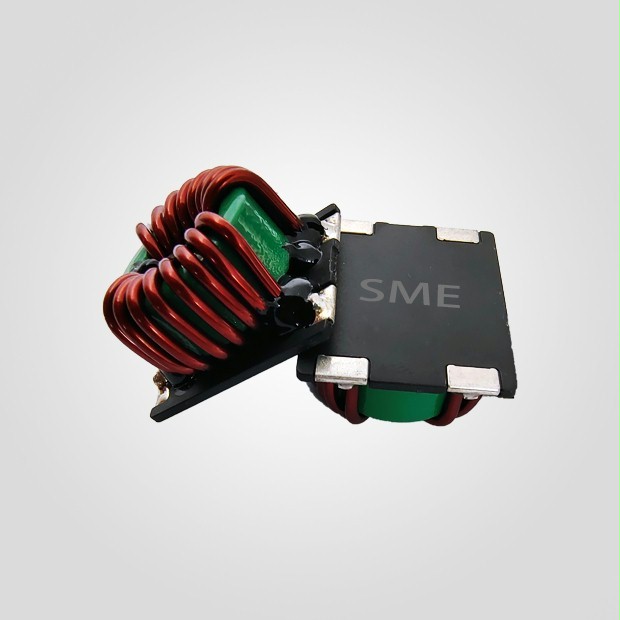

SMD Wire-Wound Power Common mode chokes - CMX Series
Series |
Dimensions (mm) |
Inductance |
Rated Current |
Specification |
||
L |
W |
H |
||||
CMX1211 |
31.5 |
25 |
28.8 |
68uH-1800uH |
9A - 50A |
![]() |
Characteristics
SMD Horizontal design for compact base
High suppression of asymmetrical interferences
Suppression even at low frequency range
Highest possible rated current by small size
Operating temperature: -40°C to +125°C
Flammability corresponding to UL 94 V-0
Applications
Interferences suppression of common mode noise. CMX1211Z680B-10 CMX121Z181B-10 CMX1211Z321B-10 CMX1211Z601B-10
Power line filter, Switch-mode power supplies. CMX1211Y801B-10 CMX1211X132B-10 CMX1211W182B-10
