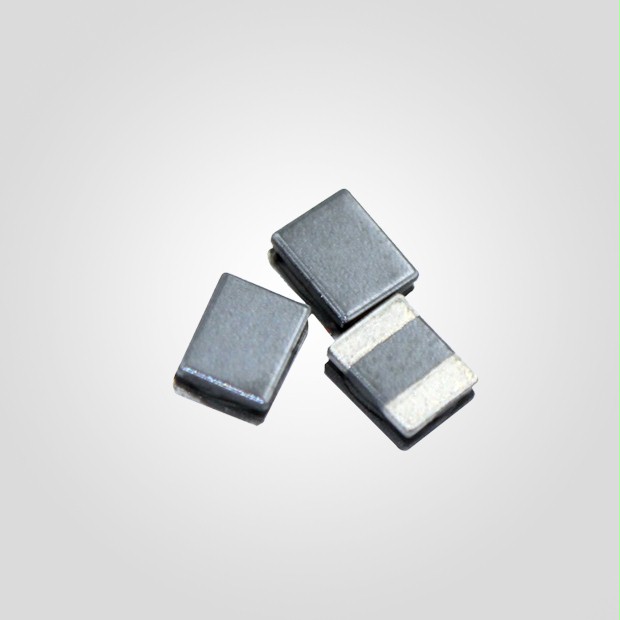

SMT High Saturation Power Inductor - SNH Series
|
Series |
Dimensions (mm) |
Inductance Range |
Saturation Current |
Specification |
||
|
L |
W |
H |
||||
|
SNH201610 |
2.0±0.2 |
1.6±0.2 |
1.08Max |
0.24uH - 10uH |
0.8A - 4.5A |
|
|
SNH252010 |
2.5±0.2 |
2.0±0.2 |
1.08Max |
0.24uH - 10uH |
0.9A - 6.1A |
|
|
SNH252012 |
2.5±0.2 |
2.0±0.2 |
1.20Max |
0.24uH - 10uH |
1.1A - 6.5A |
|
Characteristics
High Current semi-shielded power Inductor
70% higher saturation current than SNR series
Soft Saturation Current, Magnetically shielded through magnetic glue
25 V maximum Peak Voltage, Operating Temperature: -40°C to +125°C
Applications
Integrated DC/DC Converters with high ripple currents
Switching controllers requiring high efficiency
Portable devices (Smartphone, Digital cameras, Tablet, etc.)
Embedded laptops and PCs
