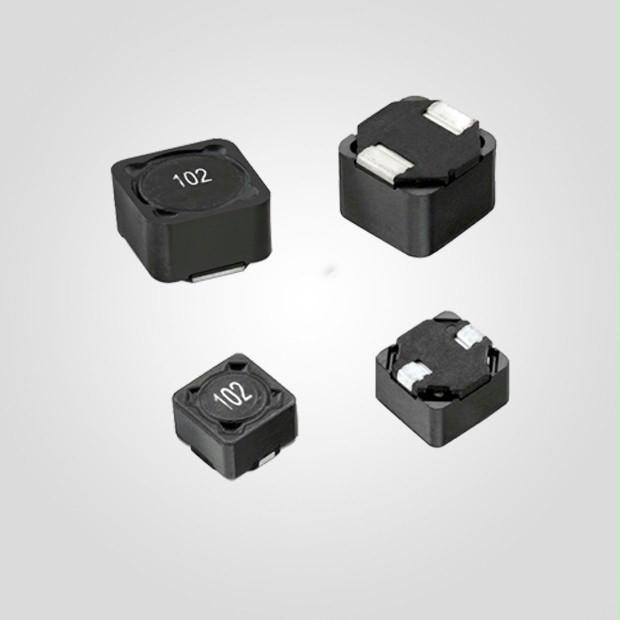

Plastic Base SMD Shielded Power Inductor (MSRH73P-129P Series)
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
MSRH73P |
7.3 |
7.3 |
3.5 |
1uH - 1000uH |
0.16A - 5.5A |
|
|
MSRH74P |
7.3 |
7.3 |
4.5 |
1uH - 1000uH |
0.18A – 6A |
|
|
MSRH124P |
12.0 |
12.0 |
4.8 |
1uH - 470uH |
0.4A - 7.7A |
|
|
MSRH125P |
12.0 |
12.0 |
6.0 |
1uH - 1000uH |
0.40A - 8A |
|
|
MSRH127P |
12.0 |
12.0 |
8.0 |
1uH - 2200uH |
0.3A - 9.8A |
|
|
MSRH129P |
12.0 |
12.0 |
10.0 |
1uH - 2200uH |
0.69A – 11A |
|
Characteristics
Ultra low RDC and Rated current
Highest possible saturation current based on ferrite
Suitable for switching frequency up to 10 MHz
Temperature dependent parameter available on REDEXPERT
Operating temperature: -40 °C to +125 °C / +150 °C
Applications
Switch mode power supplies from 0.1 W up to 300 W
Integrated DC/DC converter
Ideal for switch mode power supplies with extreme high efficiency (>95%)
