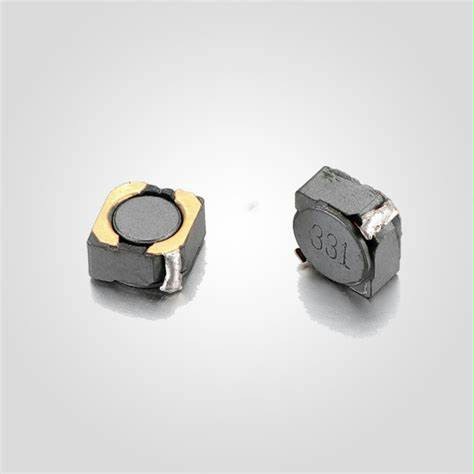

SMT Tiny Power Inductor - MSRH3D/4D/5D/6D Series
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
MSRH3D16 |
4.0 |
4.0 |
1.8 |
1.5µH - 33µH |
0.32A - 1.55A |
|
|
MSRH3D28 |
4.0 |
4.0 |
3.0 |
1.5µH - 33µH |
0.32A - 1.55A |
|
|
MSRH4D18 |
5.0 |
5.0 |
2.0 |
1µH - 39µH |
0.30A - 1.72A |
|
|
MSRH4D22 |
5.0 |
5.0 |
2.4 |
1.5µH - 150µH |
0.21A - 2.0A |
|
|
MSRH4D28 |
5.0 |
5.0 |
2.4 |
1.2µH - 180µH |
0.22A - 2.56A |
|
|
MSRH5D18 |
6.0 |
6.0 |
2.0 |
4.1µH - 100µH |
0.36A - 1.95A |
|
|
MSRH5D28 |
6.0 |
6.0 |
3.0 |
2.5µH - 100µH |
0.42A - 2.6A |
|
|
MSRH6D28 |
7.0 |
7.0 |
3.0 |
3µH - 100µH |
0.54A - 3.0A |
|
|
MSRH6D38 |
7.0 |
7.0 |
4.0 |
3.3µH - 100µH |
0.65A - 3.5A |
|
