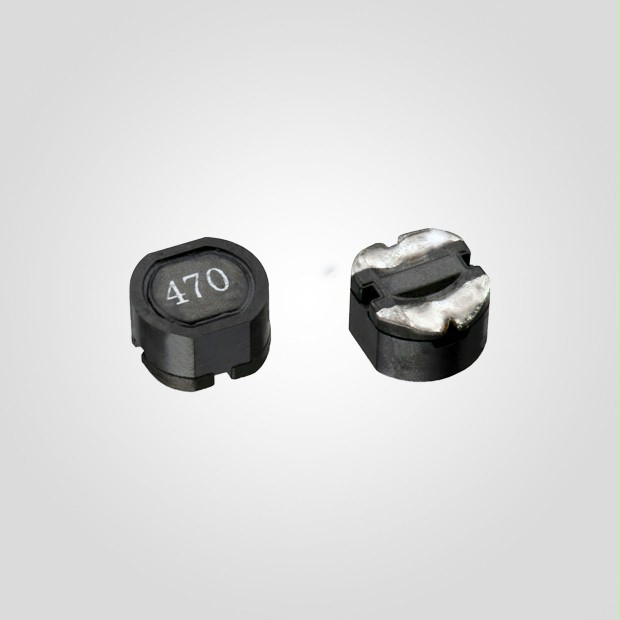

SMD Shielded Power Inductor - MSR Series
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L(±0.5) |
W(±0.5) |
H(max) |
||||
|
MSRB0603 |
5.6 |
6.2 |
3.5 |
10µH - 68µH |
0.42A - 1.0A |
|
|
MSRB0704 |
7.0 |
7.8 |
4.9 |
10µH - 270µH |
0.33A - 1.65A |
|
|
MSRB1005 |
9.0 |
10.0 |
5.9 |
10µH - 470µH |
0.33A - 2.05A |
|
|
MSRB1205 |
11.5 |
12.5 |
5.9 |
10µH - 820µH |
0.36A - 2.65A |
|
Characteristics
Magnetic shielded version from the MS series, which results in a low leakage field
Stable inductance current due the self-centering shielding ring construction
Pin compatible with the PD2 size 7850
Recommended solder profile: Reflow
Operating temperature: -40°C up to +125°C
Applications
Switching regulators with low operation voltage like in portable devices
Integrated DC-/DC-Converter
