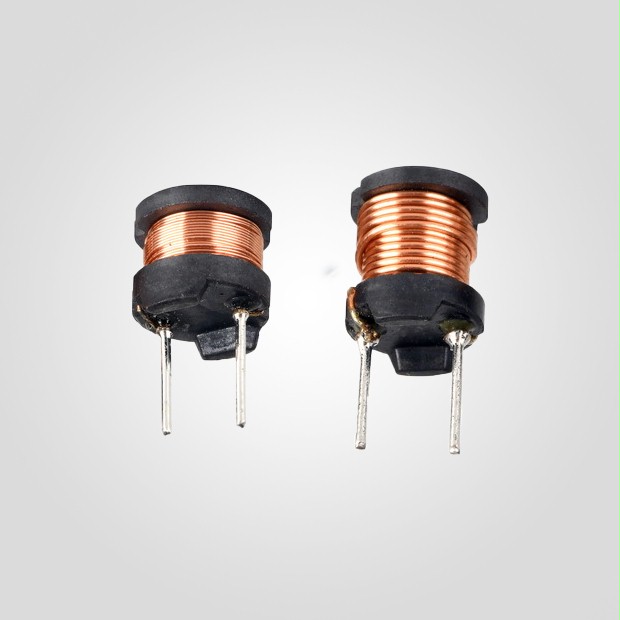

Radial Leaded Wire Wound Inductor - MC2W Series
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
|
MC2W0605 |
6x5 |
22uH - 1000uH |
0.13A - 0.9A |
|
|
MC2W0606 |
6x6.5 |
22uH - 1000uH |
0.19A - 1.27A |
|
|
MC2W0805 |
7.8x5.5 |
10uH - 10000uH |
0.081A - 2.5A |
|
|
MC2W0807 |
7.8x7.5 |
10uH - 10000uH |
0.084A - 2.9A |
|
|
MC2W0809 |
7.8x9.5 |
10uH - 15000uH |
0.068A - 2.6A |
|
|
MC2W1014 |
10x14.5 |
6.3uH - 15000uH |
0.14A - 4.3A |
Characteristics
Radial through-hole inductor
High saturation core material
Small size, Custom design on request
Applications
Signal filtering
Switches, switching power supply for small and medium voltage
Power supply filter, EMI filter
