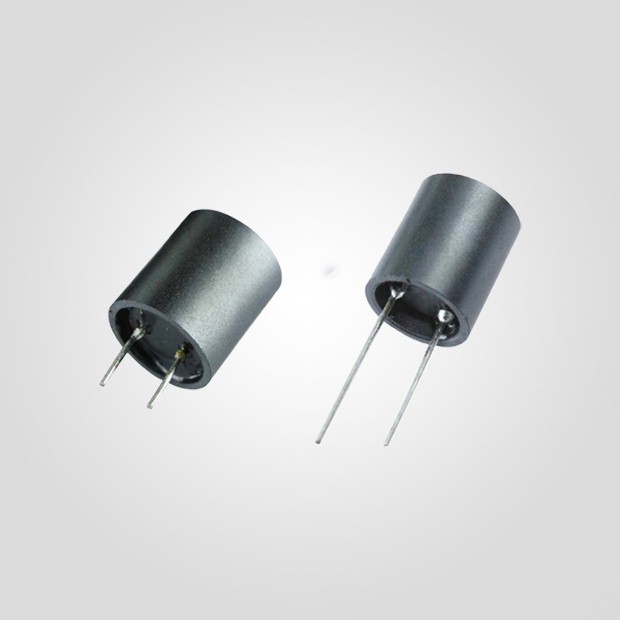

Through hole Shielded Radial Leaded Fixed Inductors - MCFS Series
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
MCFS0810 |
8.5x11 |
1µH – 47mH |
8mA – 5A |
|
MCFS1012 |
10.5x13 |
1µH – 68mH |
8mA – 5A |
|
MCFS1214 |
12.5x15 |
10µH - 2200µH |
0.18A – 3.61A |
|
MCFS1619 |
16.5x19.5 |
4.7µH - 1000µH |
1.5A – 14.5A |
|
MCFS1616 |
16.5x16.5 |
4.7µH - 1000µH |
0.85A - 12.60A |
Characteristics
Optimization of material composition causes high performance
High Saturation Current, Shielded design, Low stray field
Operating temperature: -40 °C to +125 °C
Applications
DC/DC converters, Power supplies and battery chargers
Home Entertainment Systems, Portable devices like notebooks
