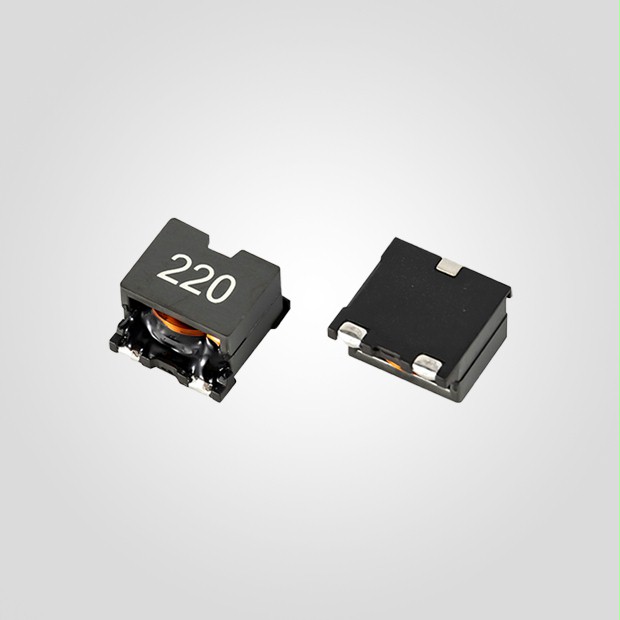

High Current Power Inductor - SER Series
|
Series |
Dimensions (mm) |
Inductance |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
SER1052 |
11.2 |
10.5 |
5.2 |
0.8uH- 5.7uH |
6A - 25.6A |
 |
|
SER1360 |
13.5 |
13.0 |
6.0 |
1uH - 10uH |
7.5A - 33.5A |
|
|
SER1390 |
13.5 |
13.0 |
9.0 |
10uH- 47uH |
3.2A - 13.2A |
|
Characteristics
High Saturation current
Flat wire construction to optimize the DC & AC losses
Low core losses (MnZn)
Magnetically shielded
Litz and round wire: base for SMT mount and coplanarity
Operating temperature: -40°C to +125°C
Applications
Storage inductor for high efficiency DC/DC converters with high ripple currents
Resonant SMPS, Filter for audio applications
