详细描述

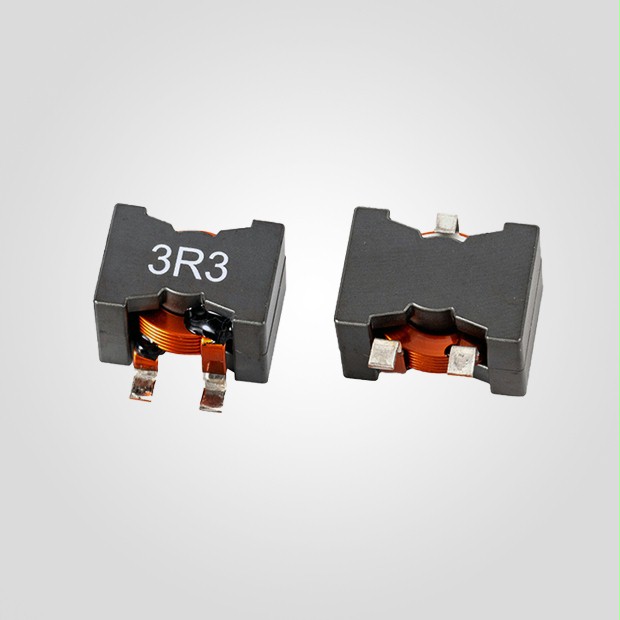

贴片大电流功率电感 - SPQ系列
|
系列 |
尺寸 (mm) |
电感量 |
饱和电流 |
规格书 |
||
|
长 |
宽 |
高 |
||||
|
SPQ2014 |
21.8 |
22.5 |
14.5 |
0.7uH- 47uH |
8.5A – 75A |
|
|
SPQ2016 |
21.8 |
22.5 |
16.5 |
4.7uH- 47uH |
6.5A – 42A |
|
|
SPQ2918 |
27.9 |
27.9 |
18.0 |
3.3uH- 33uH |
8.7A – 92.5A |
|
产品特性
High Saturation current
Flat wire construction to optimize the DC & AC losses
Low core losses (MnZn)
Magnetically shielded
Litz and round wire: base for SMT mount and coplanarity
Operating temperature: -40°C to +125°C
产品应用
Storage inductor for high efficiency DC/DC converters with high ripple currents
Resonant SMPS, Filter for audio applications
