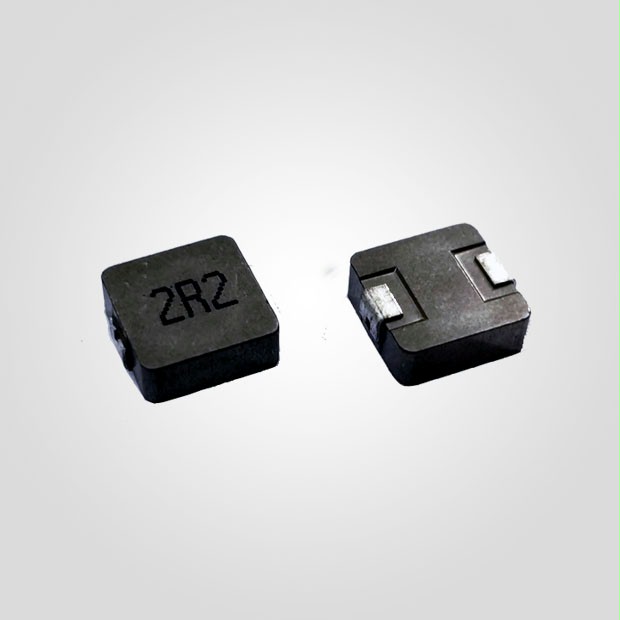

SMD High Current Inductors (HIP Series)

Series

Dimensions (mm)

Inductance Range

Saturation Current

Specification

L

W

H

HIP0320

3.4±0.35

3.2±0.25

1.8±0.2

0.15uH - 4.7uH

2.2A - 15A

HIP0420

4.4±0.35

4.2±0.25

1.8±0.2

0.1uH - 10uH

2A - 22A

HIP0520

5.4±0.3

5.2±0.3

1.8±0.2

0.47uH - 10uH

3A – 15.5A

HIP0530

5.4±0.3

5.2±0.3

2.8±0.2

0.1uH - 10uH

3.5A - 30A

HIP0618

7.0±0.3

6.6±0.3

1.6±0.2

0.1uH - 22uH

2.3A - 38A

HIP0624

7.0±0.3

6.6±0.3

2.2±0.2

0.22uH - 22uH

2.5A - 34A

HIP0630

7.0±0.3

6.6±0.3

2.8±0.2

0.22uH - 47uH

2A - 34A

HIP0650

7.0±0.3

6.6±0.3

4.8±0.2

0.47uH - 47uH

2.6A - 21A

HIP1030

11.5 max

10.0±0.3

2.8±0.2

0.22uH - 33uH

4A - 50A

HIP1040

11.5 max

10.3±0.3

3.8±0.2

0.15uH - 100uH

2.3A - 75A

HIP1235

13.45±0.3

12.8±0.5

3.5 Max

0.22uH - 22uH

6A - 50A

HIP1250

13.45±0.3

12.8±0.5

5.0 Max

0.22uH - 47uH

5A - 75A

HIP1260

13.45±0.3

12.8±0.5

6.0 Max

4.7uH - 150uH

2.7A - 24A

HIP1265

13.45±0.3

12.8±0.5

6.5 Max

4.7uH - 100uH

4A - 24A

HIP1770

17.15±0.3

17.15±0.3

7.0 Max

2.2uH - 100uH

5A - 34A

HIP2213

22.5±0.5

22.0±0.3

13.0 Max

1.0uH - 400uH

6A - 71A
