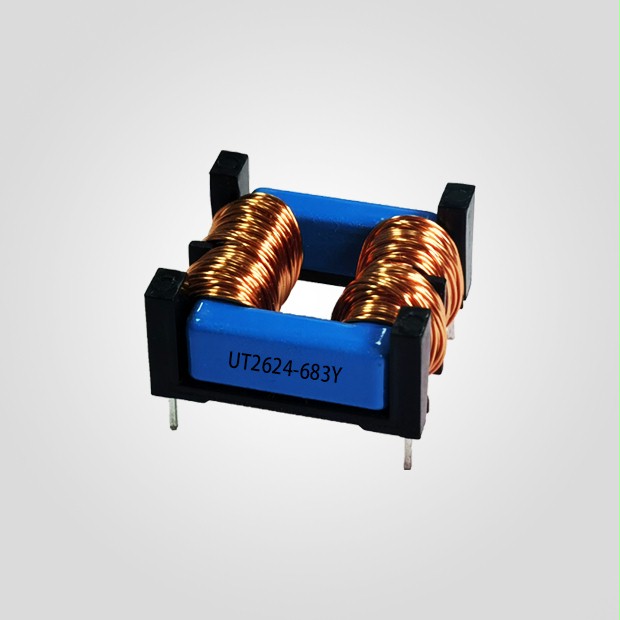

Current-compensated Frame core double chokes (UT2413, UT2624 Series) Custom design available.
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
UT2413 |
24.5 |
14.5 |
13.5 |
6mH - 100mH |
0.45A - 2.4A |
|
|
UT2624 |
26.5 |
24.8 |
14.0 |
10mH - 100mH |
0.45A - 1.6A |
|
|
Part Number |
Inductance [mH] |
DCR [mΩ] |
Rated Current [A] |
Cross TDK P/N |
Cross Wurth P/N |
|
UT2413-602Y |
6 |
220 |
2.40 |
- |
744869161063 |
|
UT2413-103Y |
10 |
291 |
1.60 |
B82732F2162B001 |
744869161103 |
|
UT2413-153Y |
15 |
432 |
1.30 |
B82732F2132B001 |
744869161153 |
|
UT2413-273Y |
27 |
771 |
0.90 |
B82732F2901B001 |
744869161273 |
|
UT2413-393Y |
39 |
1100 |
0.80 |
B82732F2801B001 |
744869161393 |
|
UT2413-473Y |
47 |
1261 |
0.70 |
B82732F2701B001 |
744869161473 |
|
UT2413-683Y |
68 |
1974 |
0.60 |
B82732F2601B001 |
744869161683 |
|
UT2413-104Y |
100 |
2931 |
0.45 |
B82732F2451B001 |
744869161104 |
|
Part Number |
Inductance [mH] |
DCR [mΩ] |
Rated Current [A] |
Cross TDK P/N |
Cross Wurth P/N |
|
UT2624-103Y |
10 |
188 |
2.30 |
B82733F2701B001 |
- |
|
UT2624-153Y |
15 |
279 |
1.90 |
B82733F2901B001 |
- |
|
UT2624-273Y |
27 |
440 |
1.40 |
B82733F2112B001 |
- |
|
UT2624-393Y |
39 |
696 |
1.20 |
B82733F2122B001 |
- |
|
UT2624473Y |
47 |
804 |
1.10 |
B82733F2142B001 |
- |
|
UT2624-683Y |
68 |
1100 |
0.90 |
B82733F2192B001 |
- |
|
UT2624-104Y |
100 |
21810 |
0.70 |
B82733F2232B001 |
- |
