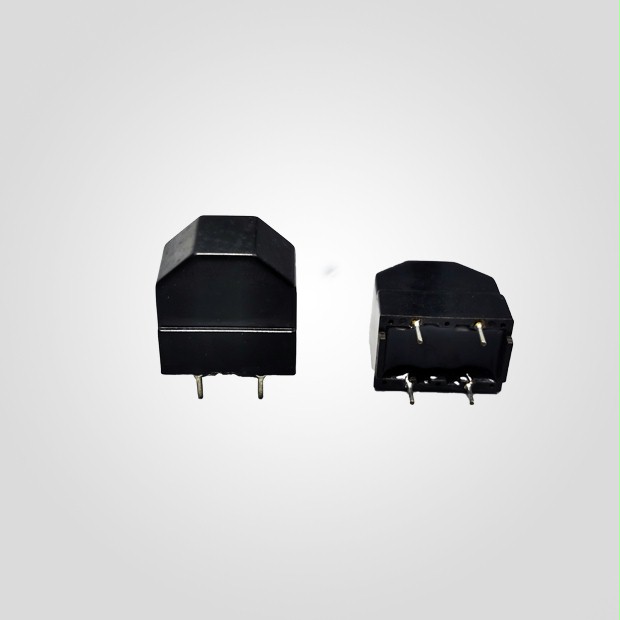

Common Mode Chokes - EMC/EMI Filters (TCC Series)
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
TCC202 |
18.2 |
8.8 |
13.5 |
1.1mH - 12mH |
0.3A - 2A |
|
|
TCC212 |
18 |
12.5 |
20 |
0.7mH - 39mH |
0.4A - 4A |
|
|
TCC214 |
23 |
15.5 |
25 |
1.5mH - 47mH |
0.3A - 4A |
|
|
TCC222 |
31 |
18 |
29.3 |
3.3mH - 47mH |
0.6A - 4A |
|
|
TCC242 |
31 |
18 |
34.3 |
1.8mH - 82mH |
0.5A - 6A |
|
Characteristics
Easy assembling due to 4 pin housing
Compact and small size
4 soldering pins for perfect mechanical decoupling
Toroidal core choke with sector winding
High interference suppression for common mode interferences in low and middle frequency ranges
Low stray field
Operating temperature: -40 °C bis 125 °C
Flammability corresponding to UL 94 V-0
Applications
Power line filter, Power electronics, SMPS, Suppression of common mode noise
