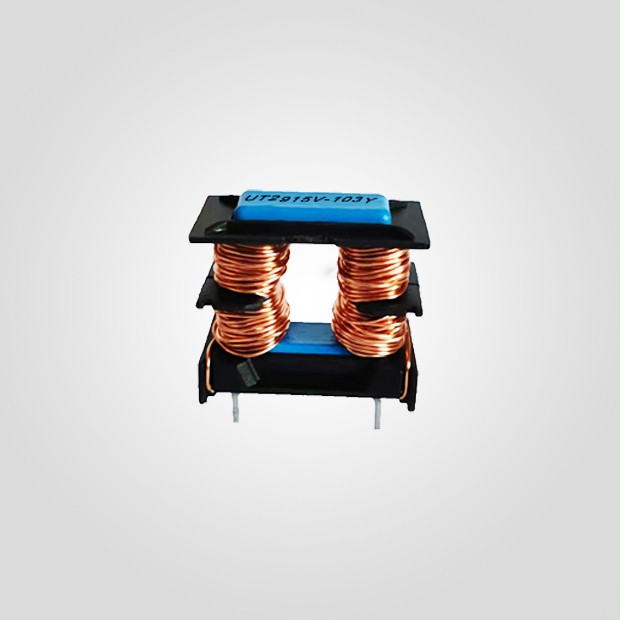

Current-compensated Frame core double chokes UT2915V Series, Custom design available.
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
UT2915V |
29.0 max |
15.5 max |
27.0 max |
10mH - 100mH |
0.7A - 2.3A |
|
|
Part Number |
Inductance [mH] |
DCR [mΩ] |
Rated Current [A] |
Cross TDK P/N |
|
UT2915V-103Y |
10 |
188 |
2.30 |
B82733V2232B001 |
|
UT2915V-153Y |
15 |
279 |
1.90 |
B82733V2192B001 |
|
UT2915V-273Y |
27 |
440 |
1.40 |
B82733V2142B001 |
|
UT2915V-393Y |
39 |
696 |
1.20 |
B82733V2122B001 |
|
UT2915V-473Y |
47 |
804 |
1.10 |
B82733V2112B001 |
|
UT2915V-683Y |
68 |
1100 |
0.90 |
B82733V2901B001 |
|
UT2915V-104Y |
100 |
1810 |
0.70 |
B82733V2701B001 |
