详细描述

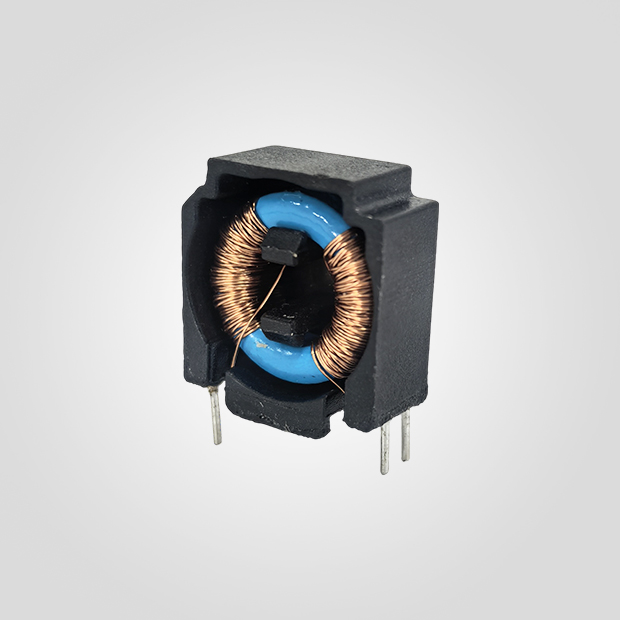

MTB1518H系列共模电力线扼流圈 , TDK B82791H 国产替代。.
| Series | Dimensions (mm) | Inductance Range | Current Range | Specification |
| MTB1518H | 15.3x7.55x17.6 | 4.7mH - 47mH | 0.25A - 0.7A |
 |
| Part Number | Inductance [mH] | DCR [mΩ] | Rated Current [A] | Cross TDK P/N |
| MTB1518H-473Y | 47 | 2400 | 0.25 | B82791H2251N020 |
| MTB1518H-333Y | 30 | 2200 | 0.3 | B82791H2301N001 |
| MTB1518H-223Y | 22 | 1900 | 0.35 | B82791H2351N001 |
| MTB1518H-153Y | 15 | 1350 | 0.4 | B82791H2401N001 |
| MTB1518H-103Y | 10 | 1000 | 0.5 | B82791H2501N001 |
| MTB1518H-682Y | 6.8 | 630 | 0.6 | B82791H2601N001 |
| MTB1518H-472Y | 4.7 | 440 | 0.7 | B82791H2701N001 |
